Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder
Product Introduction:

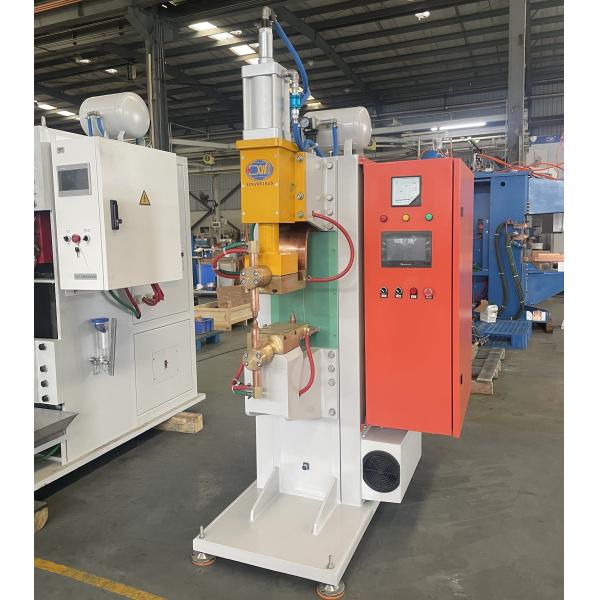

This capacitive energy storage point projection welding machine is an industrial grade solution designed specifically for high standard welding requirements. It adopts advanced capacitive energy storage technology, which can perfectly achieve convex welding of various fasteners such as screws, nuts, bolts, and studs by instantly releasing concentrated and stable huge currents, while easily performing conventional spot welding tasks. Its "manual loading and unloading, automatic welding" mode, combined with a sturdy body weighing 2000KG, ensures absolute stability of power output during the welding process and ultimate uniformity of solder joint quality, making it an inevitable choice for pursuing excellent connection quality.
Features:
1.The body is designed for impact resistance, earthquake resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.
2.The upper electrode is pressurized by a gas-liquid booster cylinder, and the electrode pressure is adjustable. The gas-liquid booster cylinder can achieve high output of the hydraulic cylinder using general air pressure without the need for a hydraulic unit.
3.The equipment is equipped with air pressure, water pressure switches, and alarms. It can effectively prevent water or gas shortage welding, thereby protecting the safety of equipment use.
4.The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.
5.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.
6.Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.
7.Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Detailed Images:
The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points. Adopting double-layer cylinder pressurization, welding pressure is sufficient and stable.
Cylinders:The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.
Gas Storage Tanks:Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.

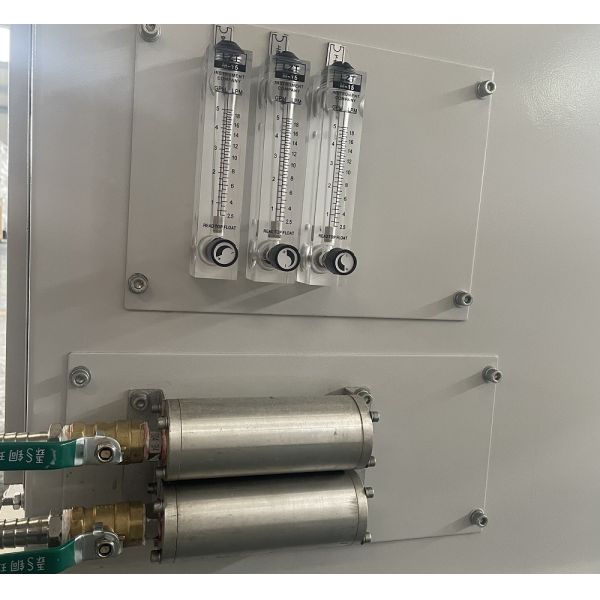

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Scene Images:

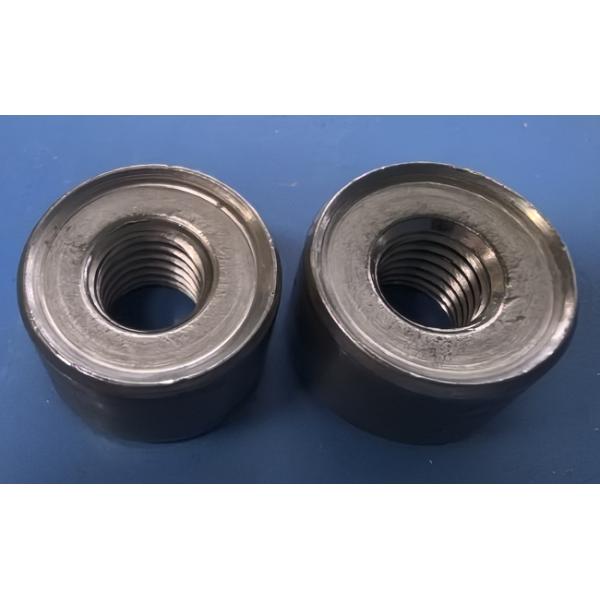

Welding Test:
