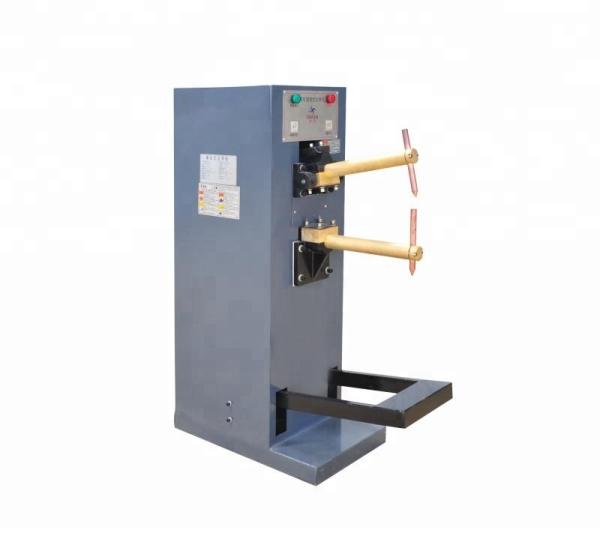

Waterproof Pedal Spot Welding Machine 25KVA Foot Operated Spot Welder

Brand Name : XWH

Model Number : DNB

Certification : CE

Place of Origin : China

MOQ : 1

Price : $550.00 - $850.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 sets/month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Product Name : Pedal Spot Welding Machine Stationary Spot Welding Machine

Machine type : Resistance welding

Weight : 100-140KG

Power : 20-35KVA

Frequency : 50HZ/60HZ

Max. Welding Thickness : 5+5 mm

Dimensions : 78*44*112cm

Rated Duty Cycle : 20%

Contact Now

Pedal Spot Welding Machine Stationary Spot Welding Machine

specification

MOdel NO.	DN1-16	DN1-25	DN1-40
Mains voltage	380V	380V	380V
Power	16KVA	25KVA	40KVA
Adjust way	Digital dial code	Digital dial code	Digital dial code
Welding thickness	1.0+1.0mm	1.5+1.5mm	2.0+2.0mm
Weight	100kg	120kg	140kg
Exterior size(mm)	780×440×1120mm	780×440×1120mm	780×440×1120mm

Benefits

Transformer is made of copper and epoxy resins with cooling water and low resistance,low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five yeas because of quality defects.

Adopt the lever pedal spring pressure sturcture,convenient for maintain and repair.

Adopt the digital control system,it's more convenient to adjust the welding time and current.

It can be welded metal durm diameter above 200mm,length 400mm.But also can be customized accoring to request.

Usage

This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
